Radium Engineering Direct Mount Fuel Pressure Regulator

As car enthusiasts we are always on the search for a cleaner, simpler way to install aftermarket components. With the Radium Engineering Direct Mount Fuel Pressure Regulator, installing and plumbing a high performance FPR couldn’t be any easier.

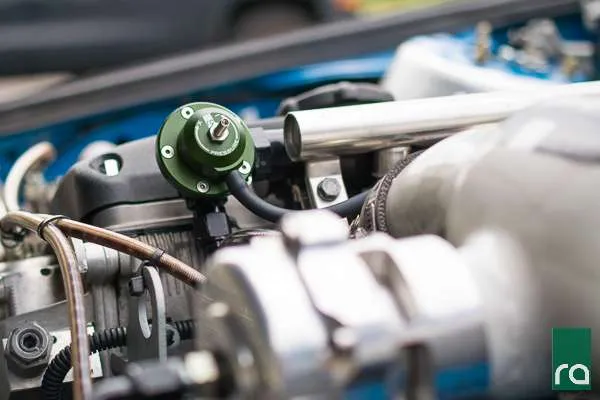

The Direct Mount Regulator (DMR) is the perfect solution for simplifying a high-flow fuel injection system. Its unique swivel inlet fitting adapts directly to the fuel rail eliminating external mounting and additional plumbing. The DMR uses the same internals as the popular Radium Engineering MPR (Multi-Pump Regulator). This means it carries over the ability to change the orifice to match the regulator to the pump flow. See the installation instructions for more details.

Either of the lower two opposing -6AN ORB ports can be used for the return line. Using the included fittings, simply install the 6AN male into the port that points in the ideal direction and install the plug into the remaining port. Fuel pressure is dialed in using the preload set screw on top.

The 1:1 vacuum reference high flow design has been tested to regulate over 1,400 liters per hour. Furthermore, with the addition of interchangeable return orifices, the DMR can be used in ANY horsepower output EFI system imaginable and is compatible with all gasoline and ethanol blends of fuel.

For example, if you have two pumps that flow 320LPH (total 640LPH), the approximate minimum pressure the regulator can achieve is about 23.5 psi. Note: if an OEM fuel pressure regulator is used for 640LPH, it will likely not be able to bypass enough fuel.

Adjust pressure with quick and easy, simply spin the set screw clockwise to achieve higher pressures and counter clockwise for less pressure. Note: Most EFI systems operate at 43.5 psi (3Bar) static fuel pressure, if you are not sure what to set your base pressure to please contact us or your ECU tuner for specs. (Not all systems will operate at 43-45psi base pressure, many newer cars will use 60psi +)

Is the DMR compatible with my fuel rail?

Your fuel rail must have an available port with compatible threads. See the different options for the adapters. Furthermore, your need to have about 2.5″ of free space off the end of the rail.

INCLUDED:

• Fuel pressure regulator
• Stainless steel hardware
• Three interchangeable return orifices
• 6AN ORB (9/16″-18) plug
• 6AN ORB (9/16″-18) to 6AN male
• 8AN ORB inlet fitting

Available in two colors:

Select the anodized color of the DMR’s CNC machined billet top:

Bright Dipped Black

Radium Green

​
