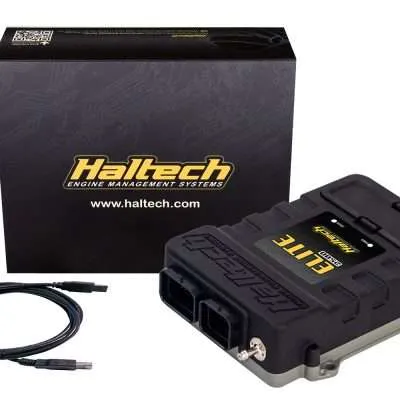

2jz-gte VVTi Plug n Play Harness Elite 2500 ECU
Velocity Element’s Plug & Play Haltech Elite Harness for the JDM Toyota 2JZGTE VVTi engine is a plug and play solution for your 2JZGTE VVTi and the Elite 2500 ECU. The VE Plug and Play 2jz vvti harness/ECU package supports Haltech controlled VVTi and OEM DBW throttle body. Setting up the Haltech ECU to control the VVTi and DBW allows the engine to be tuned flawlessly for reliable performance under any condition. By fine tuning the VVTi and DBW through the Infinity we are able to make more power and set up functions like antilag to further enhance the capabilities of the Infinity ECU on the 2jz vvti. Have a non VVTi 2jzgte? Check out our Plug & Play harness Haltech Elite MK4 supra 2jzgte (non vvti) . Those with a Lexus IS300 check out our Elite 2500 to IS300 harness and ECU package.
2jz VVTI plug n play Elite 2500 Tuning Support
All Plug and Play VE harness and Haltech ECU packages get you an instant $100 credit towards any of our custom tuning services. This includes base map services perfect for safely getting the engine running or our full Etune service for those that want a complete tune providing the best performance and reliability possible. Want to learn more about our tuning services? Check out the links below to get a better idea of exactly what we are up to.
- Haltech E-tune packages and track support services
- Example of a customers MK4 Supra E-tune.
- ECU tuning and E-tuning explained. Check out this article if you’re not familiar with “E-tunes”

2jz Haltech Elite 2500 Harness Expansion Port Details
An optional auxiliary connector with a Deutsch DTM 12P connector can be added to the harness. This is perfect for adding/wiring in common aftermarket sensors including fuel pressure, oil pressure/temp, air inlet temperature, shaft speed, VE wide band Knock sensors, exhaust MAP and ethanol content sensor. The expansion port also includes a sensor ground, 5v reference, 12v power from relay and high side output for activating a relay or solenoid, a low side output for boost control and analog inputs for mode switch and no-lift shift. For those who have added DBW or any other accessories we are here to support and offer custom harness options for anyone looking to expand and utilize more of the ECU’s supported features including traction control, drive by wire or any other function you would like to use.
2jz Harness Expansion Options:
- Automatic transmission control to Haltech Elite 2500 (for A340 OEM turbo supra transmission).
- IO expansion box (pre wired to harness + includes the Haltech IO expansion module.
- Traction Control 4 pin DTM connector
- 12 pin DTM connector Auxiliary sensor connector (pre wired for all popular aftermarket sensors IE fuel/oil pressure, flex fuel, anti lag, Map switching and more).
- DBW DTM connector (let us know what drive by wire throttle you are using and we can build you a cusom harness pre pined for DBW)
- Anti Lag solenoid output
- Rolling Launch switch
- Custom harness options (you tell us what you need and we deliver)
Haltech Elite 2500 Supra Automatic Transmission Control A340
We are proud to offer a new update for the Automatic transmission Supra using the A340 trans. This new option moves all transmission control functions to the Haltech Elite 2500. This is the perfect option for anyone looking to add paddle shift functions or better control/tune a built automatic transmission. We do highly recommended using this option if you are looking to push the limits of the automatic trans. (Please note we also recommend adding the IO expansion module options with Automatic transmission control. This ensures you will have enough inputs/outputs for other aftermarket sensors/functions. This is not required for automatic cars, the normal harness leaves automatic trans control on the OEM ECU.
ALL aftermarket ECUs, Harnesses and packages are for Motorsports use only never to be used on any public road within the USA. Please check you local laws and regulations before installing any motorsports or ECU relate products.
