AEM X series fuel pressure/oil pressure gauges are the perfect solution to monitoring your engines health. Oil and fuel are the lifeblood of any engine, keeping the engine lubricated with oil and maintaining a consistent fuel pressure or Injector pressure differential is key part to any reliable engine. Without a proper pressure gauge to monitor oil or fuel pressures you’ll have no idea if something is wrong until it’s too late and the race is lost, or worst, the engine is toast. With the AEM X-Series Oil / Fuel Pressure Gauge (30-0301) you’ll be able to keep a sharp eye on those critical pressures and catch an issue before it spells catastrophe. With the X-Series gauge’s ability to program alarm thresholds that will alert you if something is not where it should be, you’ll know right away that something is wrong. By having an alarm you’ll be able to focus on driving the car instead of worrying about checking your gauges making sure that everything is in order. This gauge is a must if you want highly accurate oil or fuel pressure readouts! Those looking for a temperature sensor/gauge combo can use the AEM oil temperature X series Gauge.
Here at Brewed Motorsports we use the AEM X series fuel and oil pressure gauges on our engine builds to provide an easy monitor for the driver and also to incorporate the fuel and oil pressure data into the ECU calibration or Tune. Check out our Blog that breaks down exactly how using an AEM X series oil/fuel pressure gauge or sensor in combination with an aftermarket ECU allows the tune/calibration to be set up to add increased performance and reliability to your engine. AEM X series fuel pressure gauge/sensor setup and tuning AEM Infinity ECU.
**NOTE: The 30-0301 comes with a black bezel and black oil pressure faceplate. You will need to purchase the optional 30-0301-ACC accessory kit to get the silver bezel, white oil pressure faceplate, black fuel pressure faceplate and white fuel pressure faceplate. Each faceplate is double sided with standard PSI on one side and metric BAR on the other. The calibration for standard or metric display is easily performed using the buttons on the face of the gauge.
AEM X-Series Gauges Features:
Easier To Read
Visual improvements include a bright center LED display that is 87% larger than our original digital gauges and provides better readability. A sweeping green LED “needle” lines the edge of the gauge face for quick reference. A 33% overall increase in the gauge face display makes it easier to see at a glance.
Easier to Mount

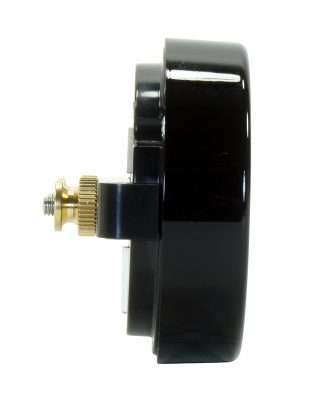

Despite the larger display, X-Series Gauges are contained in a standard 2-1/16th-inch (52mm) diameter housing for mounting in a standard gauge pod. Thanks to an advanced single board design, X-Series Gauges have an incredibly slim overall depth of under 0.825”, with a cup depth of only 0.200.” This shallow cup depth allows X-Series Digital Gauges to be mounted practically anywhere.
X-Series Digital Gauges include new technological features that make them easier to use. Two buttons on the faceplate deliver programmability for peak/recall, standard or metric center LED readout and sweeping LED needle, and user-selectable threshold warnings. The gauges are AEMnet CAN-bus enabled, so they can be daisy chained together for use with the Infinity ECU, Series 2 EMS, AQ-1 Data Logger, or 3rd party EMS or logger that accepts AEMnet. 0-5V analog outputs are also included for inputting into data loggers and engine management systems.
